產(chǎn)品名稱：DJL11 module connector
產(chǎn)品型號：JGT-DJL11-11G8TJW6
產(chǎn)品詳情：

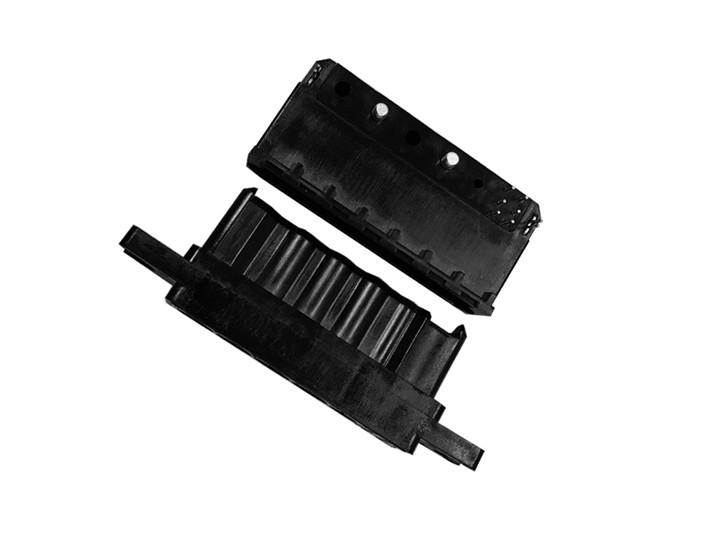

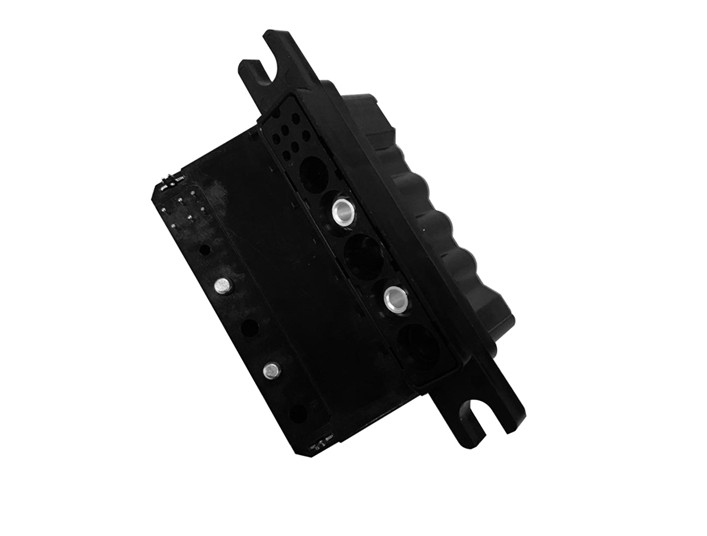

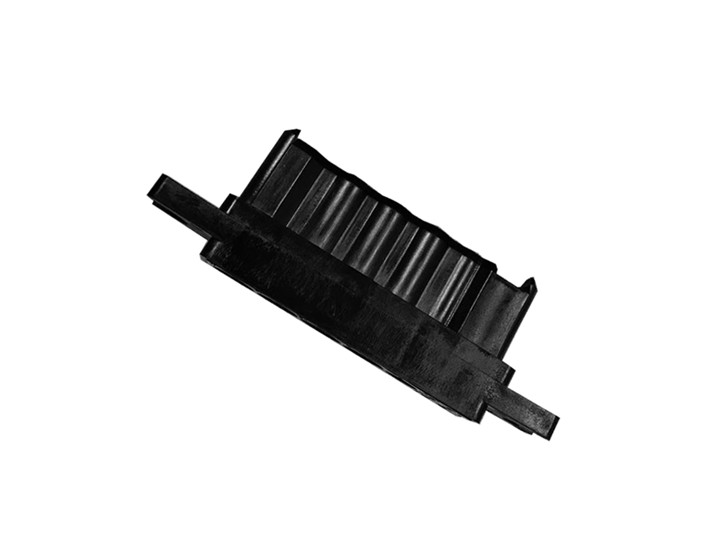

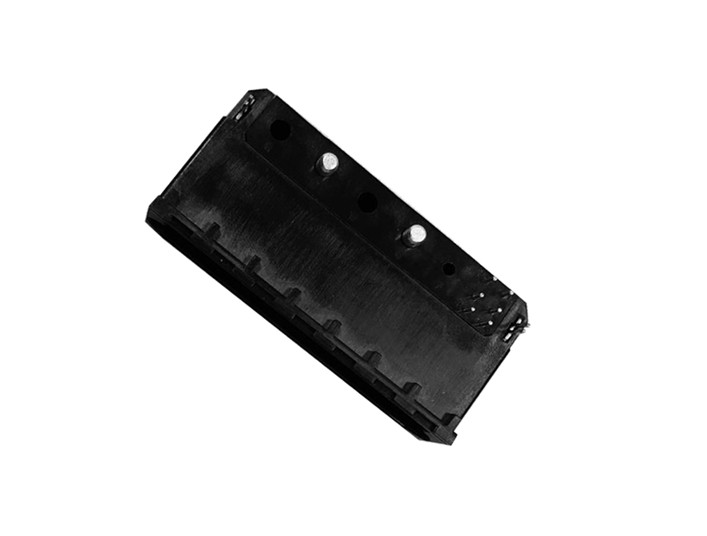

DJL11 module connector
Power contact: 1-6 pins (according to demand, some holes can not be installed)
7-11 needle (according to the requirement, some holes may not be installed)
Rated current: 1-6 pin: 5A
7-11 needle :200A
Contact resistance: 1.0(1.6)mΩ
Resistant Press Value: 1-6 Pins: 1000V
7-11 pin: 5000V
Termination Style: Pin: Buckle Pin B. Jack: Crimp Type Y, Plate Type B, Solder Type H
Surface treatment: surface silver plating, nickel plating on the bottom
Material: Pin, jack jacket Brass or copper alloy
Crown spring bronze
Insulation resistance: ≥1000MΩ
Mechanical life: 1000 times
Housing Material: PBT G30UL94V-0 Black
